PCB MATERIAL/CONSUMABLES

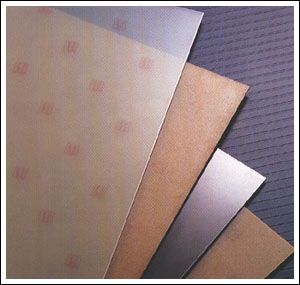

PCB POLOS : (Copper Clad Laminated)

PCB Polos

FR-4 (Fibreglass)
Single Layer Tembaga / Double Layer Tembaga Merk NH
Thickness : 1,6 mm
Lembaran Plano Size 1040 mm X 1240 mm
Lembaran Kecil : 200 mm x 260 mm

PERTINAX (Phenolic Paper)
Single Layer Tembaga Merk ZD
Size 1030 mm X 1230 mm Thickness : 1,6 mm

--------------------------------------------------------------------------------------------------

DRY FILM PHOTORESIST Merk KOLON

Usage
• Plating Process
• Normal Etching and Tenting Process

Advantage
• Wide Processing Latitude
• (Low Exposing Time & Fast Stripping time)
• Excellent Flexibility
• Scum Free, Low Sludge at Development
• Excellent Adhesion
• Vivid Print-Out Image

Thickness : 40 Micron
Width : 254 mm
Length : 180 M

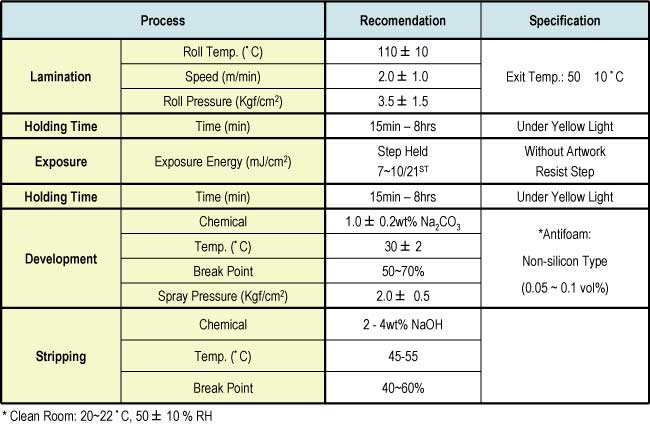

General Process Guide :
dryfilmprocess
--------------------------------------------------------------------------------------------------
Mohon hubungi kami untuk ketersediaan stock. Spesifikasi diatas tidak terikat, dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
